Note your Part Number(s) and Price(s), and then go to the How To Order page.

For further help in choosing your attenuator value, see the Detailed Information Page.

V24	V24 level controls come with 0.5% precision resistors already installed.
Part Number:	V24 - (# of channels) - (xx = value). example: V24-2-50K = V24, Stereo, 50K
Stock Values: Configurations: Stock Resistor Type:	10K, 25K, 50K, 100K and 250K Mono, Stereo, Quad, 6-Channel Precision 0.5% tolerance, 25ppm, 0805 size, low noise, THIN Film

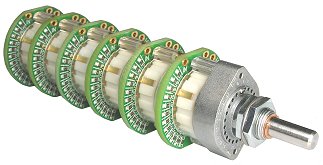

V24-1-(value) (Mono): $89

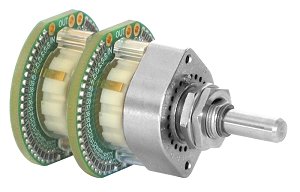

V24-2-(value) (Stereo): $165

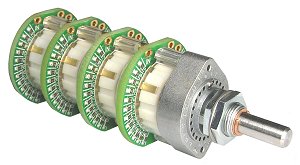

V24-4-(value) (Quad): $279

V24-6-(value) (6-channel): $384


Note: V24 printed circuit boards are round shaped, as shown above, except for the 5K value. The 5K value uses square shaped printed circuit boards as shown at right ---> All V24 PC Boards are 1.25" tall x 1.35" wide.

V47	V47 level controls come with 0.5% precision resistors already installed.
Part Number:	V47 - (# of channels) - (value). example: V47-2-50K = V47, Stereo, 50K
Stocked Values: Configurations: Stock Resistor Type:	10K, 25K, 50K,100K and 250K Mono, Stereo, Quad, 6-Channel Precision 0.5% tolerance, 25ppm, 0805 size, low noise, THIN Film

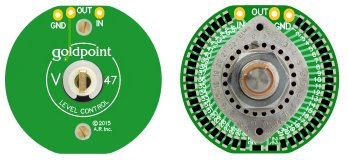

for	Although 24 positions is plenty for most applications, having 47 positions is desirable in some situations. The turning torque is smoother and the decibel step sizes are smaller. PC Boards: 1.5" wide x 1.4" tall. Also see: stepped attenuator lengths.
	The V47s have 1.5dB per step.

V47-1-(value) (mono): $134	V47-4-(value) (quad): $416
V47-2-(value) (stereo): $246	V24-6-(value) (6-chan.): $586

V24C - (Blank) Custom Stepped Attenuators:

V24C are blank stepped attenuator switches. They DO NOT have resistors installed.

To make your own custom value stepped attenuators, procure and install 23ea 1/4 or 1/2 watt thru-hole resistors per channel, each with one lead bent over. You can determine your own resistor brand and resistor values or use the recommended brands and Goldpoint resistor lists shown here.


V24C	(Older, wider PC Boards)

V24C-1 (mono): $69	V24C-4 (quad): $194
V24C-2 (stereo): $127	V24C-6 (6-channel): $258

V47C - (Blank) Custom Stepped Attenuators:

V47C are blank stepped attenuator switches. They DO NOT have resistors installed.

To make your own custom value stepped attenuators, procure and install 46ea 1/4 watt thru-hole resistors per channel, each with one lead bent over. You can determine your own resistor brand and resistor values, or use the recommended brands and Goldpoint resistor lists shown here.

V47C = 1.55" tall x 1.90" wide

V47C-SQ = 1.3" tall x 1.35" wide

Please note: Populating the small V47C-SQ units with resistors (as shown at right) ---> requires not only steady hands and a sharp soldering iron tip, but also a magnification station or magnification lamp of some kind. Consider the V47C-SQs to be for experienced assemblers.

Instead of getting V47C or V47C-SQ (Custom) blank switches, it is easier to simply purchase our V47 (Standard) units, which come with precision SMD resistors already installed, and are fully tested.

V47C-1 or V47C-SQ-1 (mono): $81	V47C-4 or V47C-SQ-4 (quad): $221
V47C-2 or V47C-SQ-2 (stereo): $153	V47C-6 or V47C-SQ-6 (6-chan): $289

Selector Switches


1 Deck	2 Decks

1 Deck = $77

2 Decks = $126

3 Decks = $164

4 Decks = $203

5 Decks = $237

6 Decks = $277

We have a web page which shows schematic diagrams for each type of switch we offer.
Click here or on the selector switch pictures above to see this and other related information.

More Example Part Numbers:

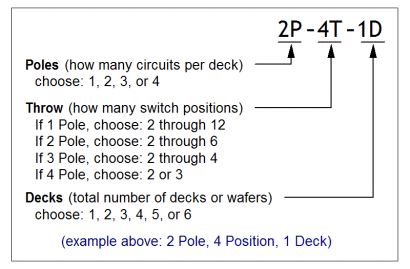

1P-8T-1D = 1 Pole, 8 Positions, 1 Deck

2P-6T-1D = 2 Poles, 6 Positions, 1 Deck

3P-4T-1D = 3 Poles, 4 Positions, 1 Deck

4P-3T-1D = 4 Poles, 3 Positions, 1 Deck

2P-6T-2D = 4 Poles, 6 Positions, 2 Decks (2 Poles per deck)

2P-5T-3D = 6 Poles, 5 Positions, 3 Decks (2 Poles per deck)

4P-3T-4D = 16 Poles, 3 Positions, 4 Decks (4 Poles per deck)

Knobs for 6mm Shafts

Custom Machined (solid) Aluminum Knobs
These solid aluminum knobs were specially designed for Goldpoint stepped attenuators and selector switches (which have 6mm (.237") diameter shafts). If you want to use knobs which were designed for 1/4" shafts on Goldpoint stepped attenuators or selector switches, it is recommended that you wrap the shafts with a few layers of Kapton tape or common Scotch tape to ensure a properly centered fit.

1.1" Diameter (K1.1) $17

Description	Part Number
Silver Satin	K1.1-S-SA
Silver Knurled	K1.1-S-KN
Black Satin	K1.1-B-SA
Black Knurled	K1.1-B-KN

1.25" Diameter (K1.25) $19

Description	Part Number
Silver Satin	K1.25-S-SA
Silver Knurled	K1.25-S-KN
Black Satin	K1.25-B-SA
Black Knurled	K1.25-B-KN

1.4" Diameter (K1.4) $22

Description	Part Number
Silver Satin	K1.4-S-SA
Silver Knurled	K1.4-S-KN
Black Satin	K1.4-B-SA
Black Knurled	K1.4-B-KN

Got Knobs?

Goldpoint Precision Passive Preamps

RCA (Single-Ended) Stereo Level Controls

1 In, 1 Out

SA1: $379
SA1-47: $464
SA1M: $416
SA1M-47: $499

2 In, 1 Out

SA2: $471
SA2-47: $556

3 In, 2 Out

SA3+2: $655
SA3+2-47: $749

4 In, 1 Out

SA4: $532
SA4-47 $617
SA4M $569
SA4M-47 $654

RCA (Single-Ended) Input/Output Switching Controls

2 In, 1 Out

SW2 : $325

3 In, 2 Out or
2 In,3 Out

SW3+2: $508

4 In, 1 Out

SW4: $413

XLR (Balanced) Precision Stereo Level Controls

1 In, 1 Out

SA1X: $540
SA1X-47: $655
SA1XM: $607
SA1XM-47: $722

2 In, 1 Out

SA2X-I: $661
SA2X-I-47: $776
SA2XM-I: $728
SA2XM-I-47: $843

1 In, 2 Out

SA2X-O: $661
SA2X-O-47: $776
SA2XM-O: $728
SA2XM-O-47: $843

XLR (Balanced) Input/Output Switching Controls

2 In, 1 Out

SW2X-I: $433

1 In, 2 Out

SW2X-O: $433

Enclosures / Project Boxes

4 3/4" x 6" x 2 3/8"

EN1-A: $44
EN1-B: $56
EN1-C: $68

6 1/4" x 6" x 2 3/8"

EN2-A: $50
EN2-B: $63
EN2-C: $75

Virtual Ground PC Boards
Virtual Ground VG1 Printed Circuit Board - $5 ea.	Virtual Ground VG2 Printed Circuit Board - $8 ea.

Shaft Couplers

Need to mount your Stepped Attenuator or Selector Switch closer to the rear of your chassis?

Our custom machined shaft couplers are designed for 1/4" (.250") round shafts and will also work with 6mm (.237") shafts. Each has four set screws. They are finished in bright blue anodize.

Goldpoint part number SC1 - - - - - - - - - $8

Panel Bearings:

1/4" aluminum rod is commonly available from many hardware stores. Here's one on-line source: speedymetals.com & 1/4" extruded aluminum rod

You will want to purchase a "panel bearing", (or "panel bushing") for use where your new 1/4" extended shaft goes through your front panel.

Abbratron H. H. Smith part number 119

Newark Electronics part number 44F7417
