The
Goldpoint SA3+2 easily out
performs other passive
preamplifiers.
with it's superior clarity,
transparency, and precision. It offers
24 or 47-position
precision
stepped attenuation, three Input sets
and two Output sets. The SA3+2 is 100%
passive,
designed
to improve sound quality while
replacing (often unnecessary) active
preamplifiers.
|
|
|
|
No
distortion is added to your signal path
while performing level control.
(Active
preamps add in at least some
distortion.) |

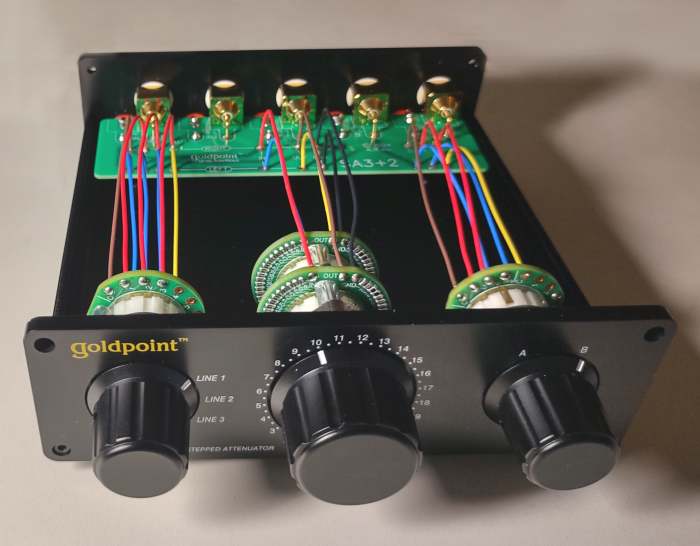

| A 3-position
selector switch provides level control for
multiple signal sources. |
| You can also
select either of two outputs. |
| Goldpoint
precision stepped attenuator for low noise
and excellent channel-to-channel signal
level matching. |
 |
Volume
Control: SA3+2 (stereo):
Goldpoint low-noise, precision
Stereo 24 or 47
Position Stepped Attenuator. |
|
Selector
Switches: 2ea Goldpoint 2P-3T-1D. |
|
Inputs
& Outputs: Three sets of Stereo
Inputs and two Output sets. |
|

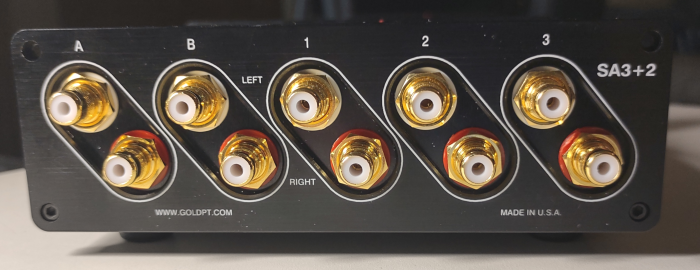

Rear
Panel RCA Jacks: Gold-plated, heavy
duty solid brass, right angle PC board
style. |
|
Wiring:
High grade, silver-plated copper,
multi-stranded, with Teflon jacketing. |
|
Chassis:
Aluminium clam-shell, 1/4" front and
rear panels. |
|
Dimensions:
2.3" Tall x 6.2" Wide x 7.0" Long |
|
Weight: 2
lb. |
|
