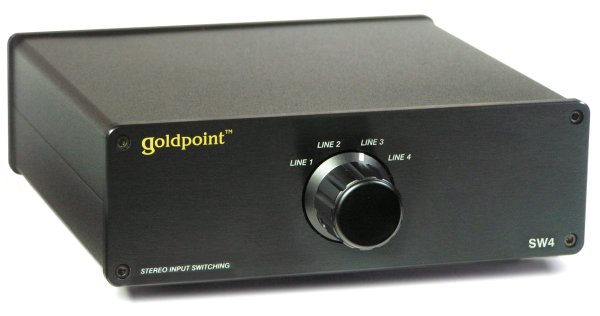

The SW4 Stereo
Input/Output Switching Control
|
|
|
|
Need to
select more music sources than your
amplifier has input connectors for?
Here is
your solution. The Goldpoint SW4
is also handy on any audio
test/compare bench.
|
|
|
|
Our original
SW4 provided 4 Input selections - for use
with an amplifier which only had one set
of Input jacks.

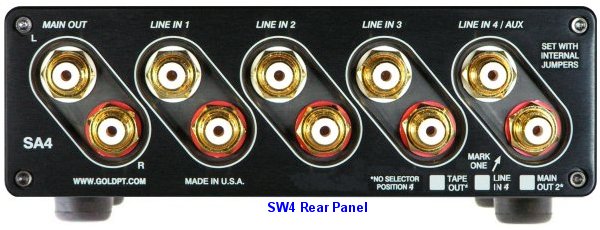

It employed this SA4 rear panel:
|

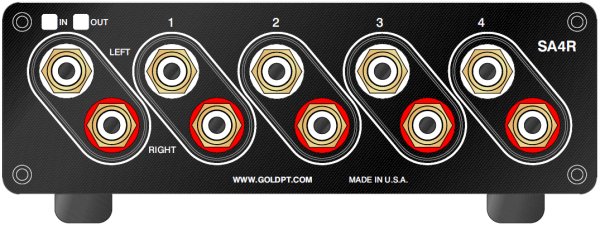

The SW4 is
reversible. Use as 4 In, 1 Out or
as 1 In, 4 Out .
|
|
Selector
Switch: Goldpoint 2P-4T-1D (This
rear panel is the same one used on our SA4
Passive Preamp.) |
|
AUX Input
can be easily rewired (two internal
wire jumpers) for an alternate functions:
1) Fourth
Line Input (factory default).
2) Tape
Output.
3) Main
Output #2. |
|
|
|

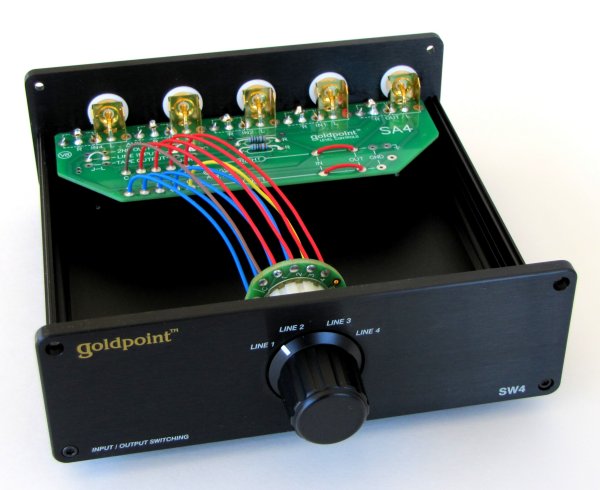

Wiring:
High grade, silver-plated copper,
multi-stranded, with Teflon jacketing. |
|
Rear
Panel RCA Jacks: Gold-plated, heavy
duty solid brass, right angle PC board
style. |
|
Chassis:
Aluminium clam-shell, 1/4" front and
rear panels. |
|
Dimensions:
2.3" Tall x 6.2" Wide x 7.0" Long |
|
Weight: 1
1/4 lb. |
|
