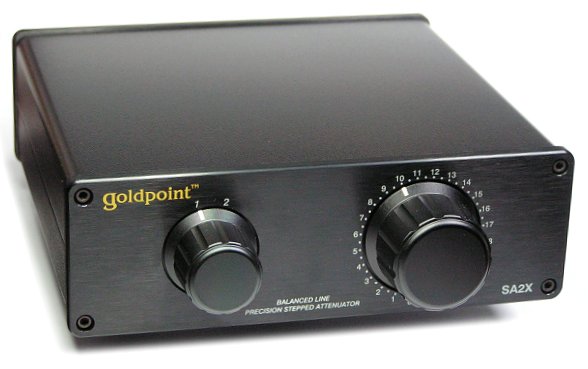

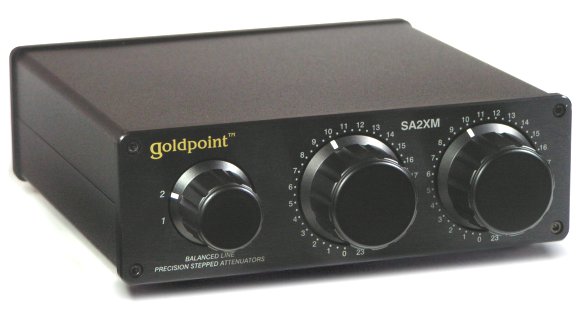

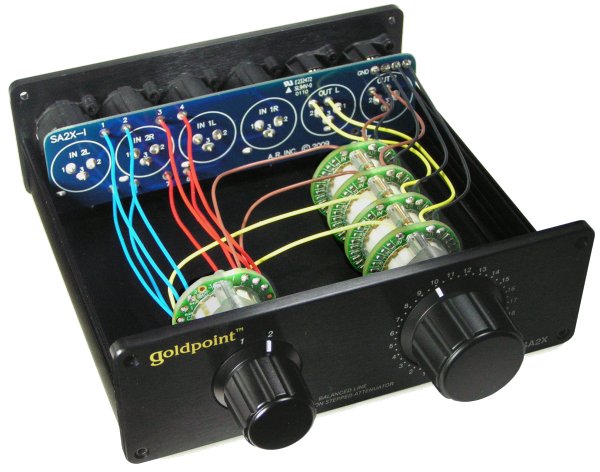

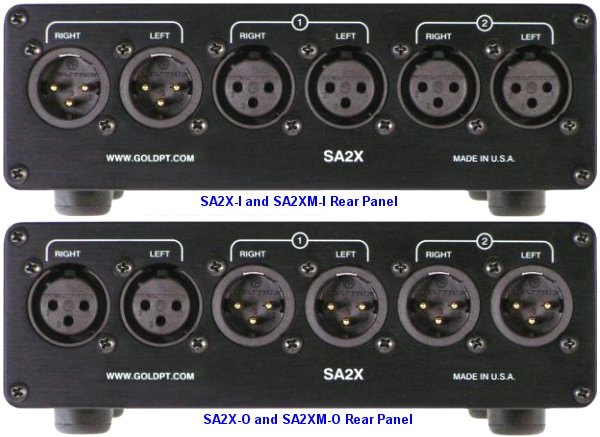

The SA2X and SA2XM Precision Balanced Level Controls The SA2X (balanced stereo) and SA2XM (balanced dual mono) are exceptionally transparent sounding precision level controls. Available with two selectable Inputs or two selectable Outputs (see below), they were designed mainly for recording studio environments. No distortion is added to your signal path while performing level control. (Active preamps add in at least some distortion.) 2-position selector switch allows level control for 2 Signal Sources or 2 Outputs. Available with Goldpoint fully Balanced Stereo (4 section) Precision Stepped Attenuator or fully Balanced Dual Mono (2 section) Precision Stepped Attenuators - for low noise and excellent channel-to-channel signal level matching. Ultimate sonic clarity and precision at a reasonable price. Inside the SA2X Level Control: SA2X-I and SA2X-O: Goldpoint precision Balanced Stereo 24 or 47 Position Stepped Attenuators.. SA2XM-I and SA2XM-O: Goldpoint precision Balanced Dual Mono 24 or 47 Position Stepped Attenuators. Connectors: Neutrik XLR, with gold-plated pins. Selector Switch: Goldpoint 4P-2T-1D Wiring: High grade, silver-plated copper, multi-stranded, with Teflon jacketing. Chassis: Aluminium clam-shell, 1/4" front and rear panels. Dimensions: 2.3" Tall x 6.2" Wide x 6.6" Long Weight: 1 3/4 lb.

Prices: Part Number Level Control, Inputs and Outputs Price SA2X-I Balanced Stereo 24-Position Stepped Attenuator, 2 XLR Input sets,1 XLR Output set $661 SA2X-I-47 Balanced Stereo 47-Position Stepped Attenuator, 2 XLR Input sets,1 XLR Output set $776 SA2X-O Balanced Stereo 24-Position Stepped Attenuator, 2 XLR Output sets, 1 XLR Input set $661 SA2X-O-47 Balanced Stereo 47-Position Stepped Attenuator, 2 XLR Output sets, 1 XLR Input set $776 SA2XM-I Balanced Dual Mono 24-Position Stepped Attenuators, 2 XLR Input sets, 1 XLR Output set $728 SA2XM-I-47 Balanced Dual Mono 47-Position Stepped Attenuators, 2 XLR Input sets, 1 XLR Output set $843 SA2XM-O Balanced Dual Mono 24-Position Stepped Attenuators, 2 XLR Output sets, 1 XLR Input set $728 SA2XM-O-47 Balanced Dual Mono 47-Position Stepped Attenuators, 2 XLR Output sets, 1 XLR Input set $843 Note about our knob dial pattern: The Goldpoint SA box front panel dial pattern shows the numbers 0 to 23, with a dot in between each adjacent number. When a 24-position stepped attenuator is installed, each knob position points to a number. When a 47-position stepped attenuator is installed, each knob position points to a number then a dot, alternately.

Goldpoint Passive Preamps, Switchers and Project Boxes RCA Preamp: SA1 SA2 SA3+2 SA4 RCA Switcher: SW2 SW3+2 SW4 XLR Preamp: SA1X SA2X-I SA2X-O XLR Switcher: SW2X-I SW2X-O Blank Boxes: EN1 EN2
