The SA4 and SA4M Passive
Preamps
|
|
|
|
|
|
The

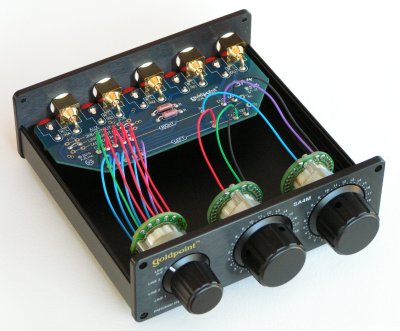

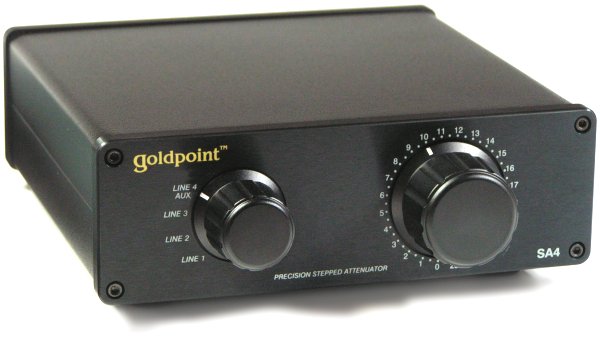

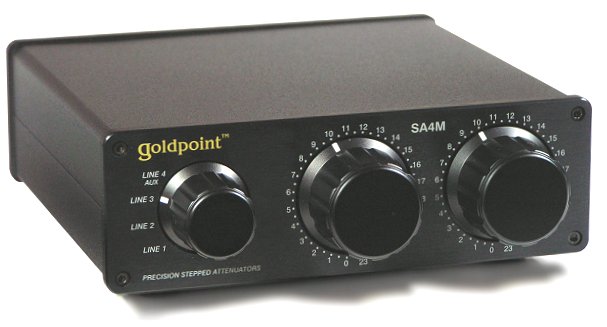

Goldpoint SA4 (stereo) and SA4M
(dual mono volume controls) easily out
perform other
passive
preamplifiers.
Along with superior clarity,
transparency, and precision, they
also provide
the
flexibility of a selectable
Auxiliary Input/Output RCA jack set
100% passive, they were
designed
to
improve sound quality while
replacing (often unnecessary) active
preamplifiers.
|
|
|
|
No
distortion is added to your signal path
while performing level control.
(Active
preamps add in at least some
distortion.) |
|
|
4-position
selector switch allows level control for
multiple signal sources. |
|
|
Versatile

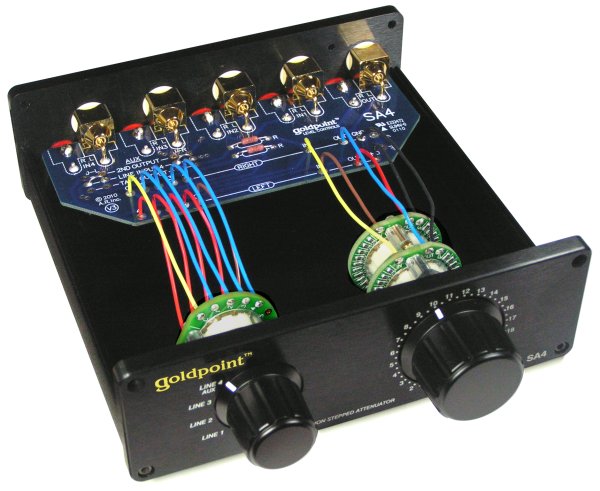

AUX Input allows easy rewiring (two
internal wire jumpers) for alternative
preamp functions. |
|
|
Goldpoint
precision stepped attenuator for low noise
and excellent channel-to-channel signal
level matching. |
Recently,
the SA4R rear panel was added which
can be either 4 In, 1
Out
or 1 In, 4 Out.
So if you
need 1 In, 4
Out, let us
know and we'll use this rear panel:
|
|
Volume
Control: SA4 (stereo) and SA4M
(dual mono):
Goldpoint low-noise, precision
Stereo 24 or 47
Position Stepped Attenuator. |
|
Selector
Switch: Goldpoint 2P-4T-1D. |
|
Inputs
& Outputs: Four sets of Stereo
Inputs and one set of Outputs. |
|
LINE IN 4 /
AUX is easily configured for alternate use
by re-positioning 2 internal wire jumpers.
1) Fourth
Line Input (factory default).
2) Tape
Output.
3) Main
Output #2. |
|

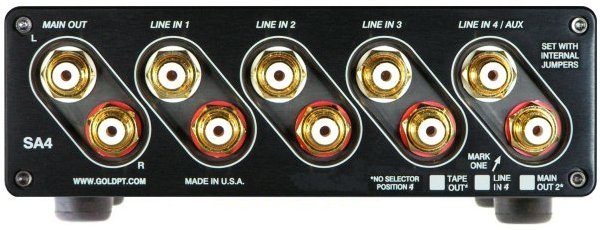

Rear
Panel RCA Jacks: Gold-plated, heavy
duty solid brass, right angle PC board
style. |
|
Wiring:
High grade, silver-plated copper,
multi-stranded, with Teflon jacketing. |
|
Chassis:
Aluminium clam-shell, 1/4" front and
rear panels. |
|
Dimensions:
2.3" Tall x 6.2" Wide x 7.0" Long |
|
Weight: 1
3/4 lb. |
|
