Expect
the Goldpoint SA2 to out
perform other passive preamplifiers
with its clarity,
transparency
and
precision. 100% passive, and with two
selectable Inputs, the SA2 is
intended
to provide superior sound quality even
when replacing expensive active
preamplifiers.
|
|
No
distortion is added to your signal path
while performing level control.
(Active
preamps add in at least some
distortion.) |
| Selector
switch: 2-position - for two signal
sources. |
| Goldpoint
precision stepped attenuator for low noise
and excellent channel-to-channel signal
level matching. |

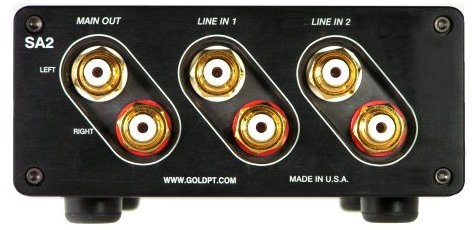

The upper SA2 rear panel shows
the traditional 2 Input sets with 1
Output set.

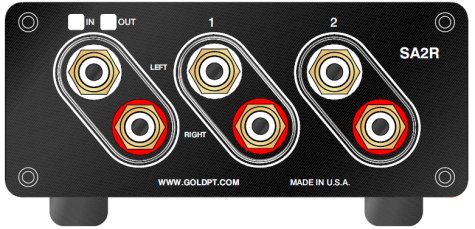

The lower SA2R panel was designed for
use as either 1 In / 2 Outs or
2 Ins / 1 Out.
|

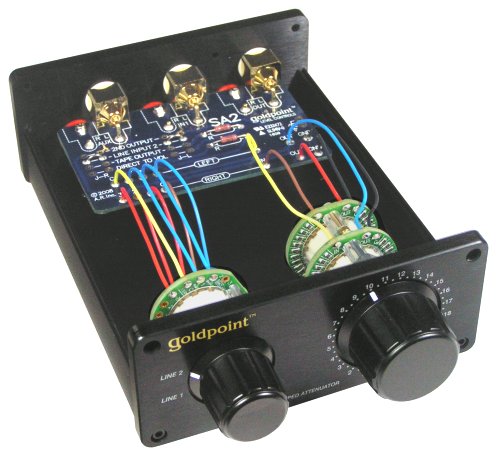

Inside the
SA2
|
|
 |
Volume
Control: Goldpoint low-noise, precision
Stereo 24 or 47
Position Stepped Attenuator. |
|
Selector
Switch: Goldpoint
2P-2T-1D |
|
Inputs
& Outputs: Two
Stereo sets of Inputs and one set of
Outputs. |
|
Rear
Panel RCA Jacks: Gold-plated,
heavy duty solid brass, right angle PC
board style. |
|
Wiring:
High grade, silver-plated copper,
multi-stranded, with Teflon jacketing. |
|
Chassis:
Aluminium clam-shell, 1/4" front and
rear panels. |
|
Dimensions:
2.3" Tall x 4.7" Wide
x 7.0" Long |
|
Weight: 1
1/2 lb.. |
|
