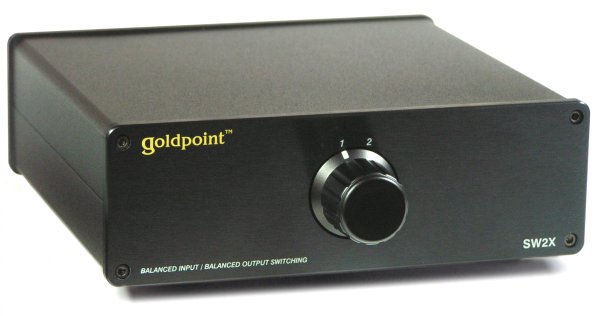

The SW2X Balanced Stereo
Input/Output Switching Controls
|
|
|
|
Need to
select from two Balanced Stereo Input
Sources or select to two Balanced
Stereo Output targets?
Your
off-the-shelf solution is to use a
Goldpoint Level Controls (tm) SW2X
Input/Output Selector.
|
|
|
|
Examples of
uses:
SW2X-I:
(2 XLR Input Sets): You have two mixing
boards and want to select which goes to
your monitor speakers.
SW2X-O:
(2 XLR Output Sets): You want to select
which of two sets of monitor speakers to
listen to. |
 |

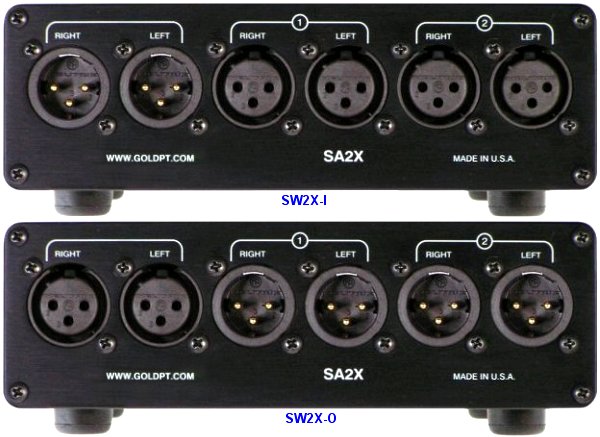

Connectors:
(Neutrik XLR, with gold-plated pins.)
SW2X-I:
Two 2 XLR Input sets, One Output set. SW2X-O: Two 2 XLR Output
sets, One Input set.
(These are
the same rear panels used on our SA2X
Passive Preamps.) |
|
Selector
Switch:
Goldpoint 4P-2T-1D |
|
Wiring:
High grade, silver-plated copper,
multi-stranded, with Teflon jacketing. |
|
Chassis:
Aluminium clam-shell, 1/4" front and
rear panels. |
|
Dimensions:
2.3" Tall x 6.2" Wide x 7.0" Long |
|
Weight: 1
1/4 lb. |
|
