| The SA1X Precision
Balanced Level Control |
|
|
|

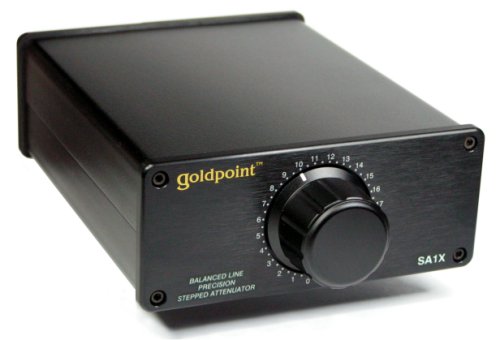

The SA1X
is a transparent sounding balanced
stereo precision level control.
It is
commonly used between mixing consoles
and amplified speakers.
Pro
Audio users typically rave about its
clear sound quality.
|
|
No
distortion is added to your signal path
while performing level control.
(Active
preamps add in at least some
distortion.) |
|
|
Goldpoint
precision, 4-section (balanced stereo)
Stepped Attenuator -
for low
noise and excellent channel-to-channel
signal level matching. |
|
|
Ultimate
sonic clarity and precision at a
reasonable price. |

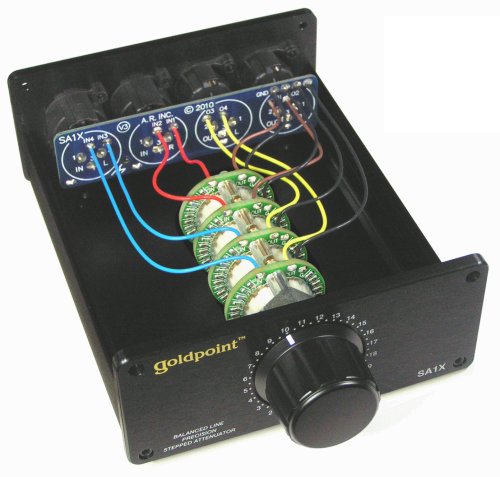

Inside the
SA1X
|
|
|
Level
Control: Goldpoint low-noise, precision
Balanced Stereo 24
or 47
Position Stepped Attenuator. |
|

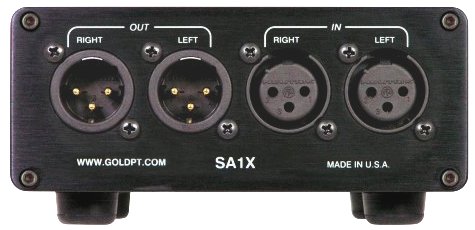

Connectors:
One set of Inputs, one set of Outputs.
Neutrik XLR, with gold-plated pins. |
|
Wiring:
High grade, silver-plated copper,
multi-stranded, with Teflon jacketing. |
|
Chassis:
Aluminium clam-shell, 1/4" front and
rear panels. |
|
Dimensions: 2.3" Tall
x 4.7" Wide x 7.0" Long |
|
Weight:
1 1/4 lb. |
|

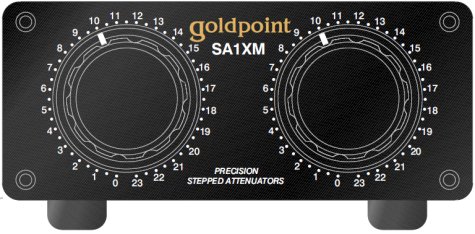

NEW for 2024
The SA1XM is a balanced line
dual mono level control with XLR connectors. It's available with
24-position or 47-position stepped
attenuators.
Applications:
> left/right balance control for
balanced stereo amplifier..
> individual level settings for
a pair of monoblock
amlifiers.
|
|
| SA1XM |
|
